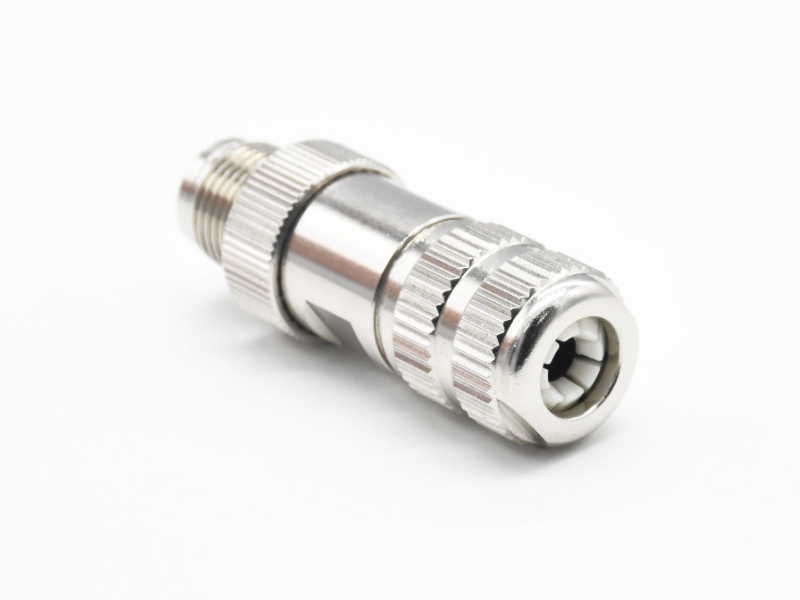

136-5017-5067
| Specifications | |||
| Number of pins: | 8 Pins | Key Position: | Y Coded |
| Left Connector: | M12 Y Code Plug Straight | Right Connector: | - |
| AWG Gauge: | 18 AWG ~ 28 AWG | Connection Type | Screw Locking |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | PA 66, Black | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | Zinc Alloy,Nickel-Plated | Sealing: | NBR |
| Shielding: | Yes | Overmolding: | - |
| Wires & Cables Conductor: | Bare Copper | Wires & Cables Jacket: | PVC | TPU |
| Technical Characteristics | |||
| Rated Current: | 0.5A ~ 6A | Rated Voltage: | 30V |
| Rated Temperature | -25°C ~ + 85°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 500 Times | Protection Grade: | IP67 |
| Product Certification: | - | Production Design Standards: | IPC 620, IEC 61076-2-113 |
| Application | |||
