| Specifications | |||

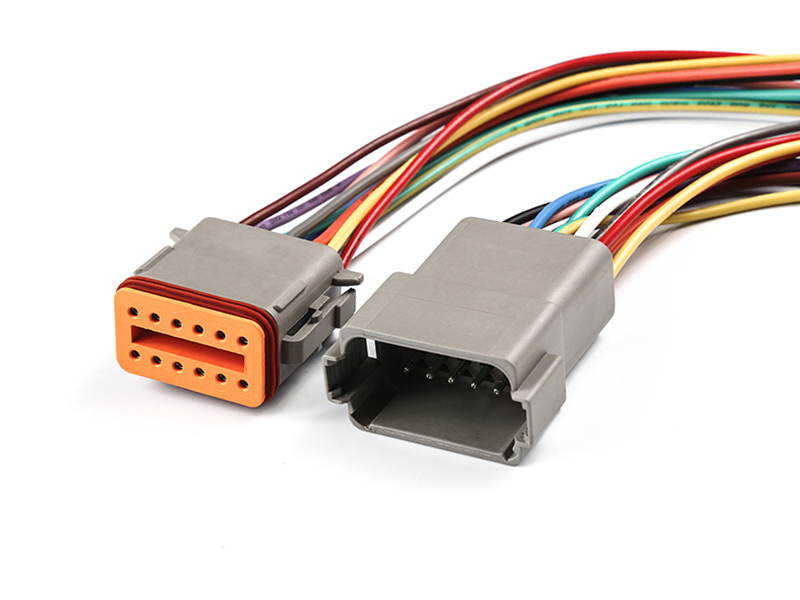

| Number of pins: | 12 Pins | Key Position: | A Code |
| Left Connector: | DT04-12PA / AT04-12PA | Right Connector: | DT06-12SA / AT06-12SA |
| AWG Gauge: | 14 AWG ~ 20 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | PA, Gray | Contacts: | Copper Alloy,Tin-Plated |
| Shell: | PA GF | Sealing: | Silicone |
| Shielding: | Be without | Overmolding: | Strain Relief Optional |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 13A | Rated Voltage: | 250V AC,DC |
| Rated Temperature | -55°C ~ + 125°C | Flame Retardant Grade: | UL94V-0 |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 10mΩ Max |
| Durability: | ≥ 100 Times | Protection Grade: | IP67 |
| Product Certification: | - | Production Design Standards: | IPC620 |
| Application | |||
| DEUTSCH CONNECTIVITY SOLUTIONS ARE RENOWNED FOR THEIR USE IN THE MOST DEMADING ENVIRONMENTS. FROM AEROSPACE APPLICATIONS TO NATIONAL DEFENSE, EVEN SHIPS, INDUSTRIAL AND COMMERCIAL TRANSPORTATION, AND RAILWAY APPLICATIONS, INCLUDING WIRES, CONNECTORS, TERMINALS, ACCESSORIES, AND SUBMARINE POWER CABLES. THE DEUTSCH DT SERIES CONNECTORS PROVIDE FIELD PROVEN RELIABILITY AND DURABLE QUALITY, AS WELL AS SPECIFIC OPTIONAL FLANGE INSTALLATION, MULTI PIN ARRANGEMENT, LOWER COST OPTIONS, AND DESIGN FLEXIBILITY. | |||
