| Specifications | |||
| Number of pins: | 16 Pins | Key Position: | Standard A |

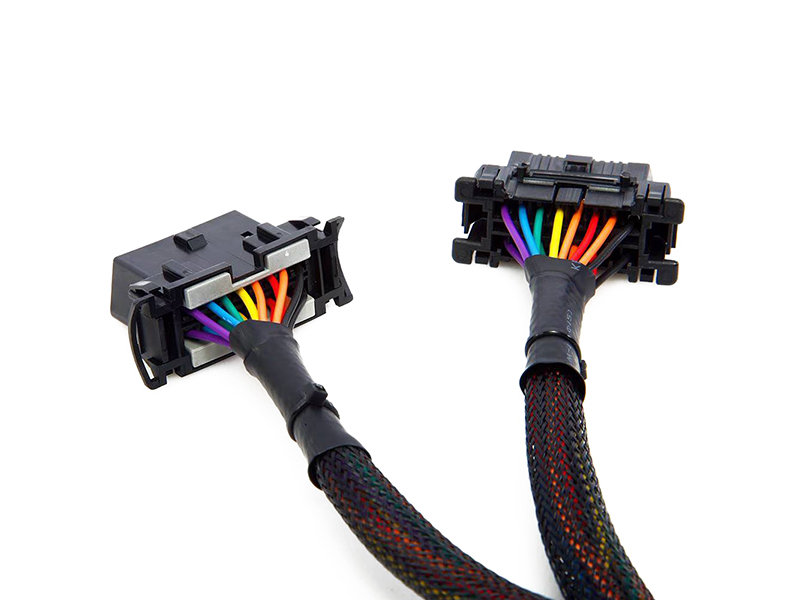

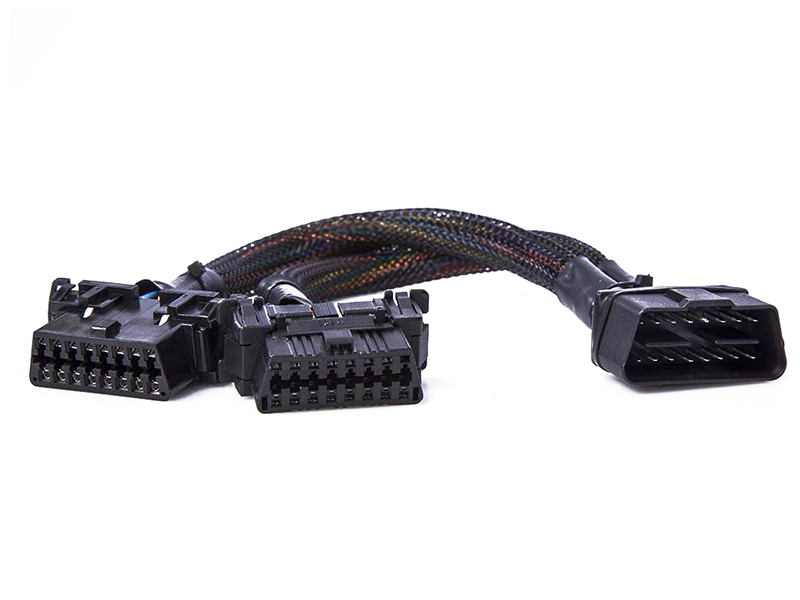

| Left Connector: | OBD-II 16P Plug | Right Connector: | OBD-II 16P Socket |
| AWG Gauge: | 20 AWG ~ 28 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | PBT, Black | Contacts: | Copper Alloy,Nickel-Plated |
| Shell: | - | Sealing: | - |
| Shielding: | - | Overmolding: | Optional |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC | TPU |
| Technical Characteristics | |||
| Rated Current: | 10A | Rated Voltage: | 24V |
| Rated Temperature | -40°C ~ + 85°C | Flame Retardant Grade: | UL94V-0,VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 5000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | IPC620 |
| Application | |||
| BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLES CONNECTORS BOMCAN PROVIDE YOU WITH PROFESSIONAL CABLE HARNESS ENGINEERING SOLUTIONS | |||
