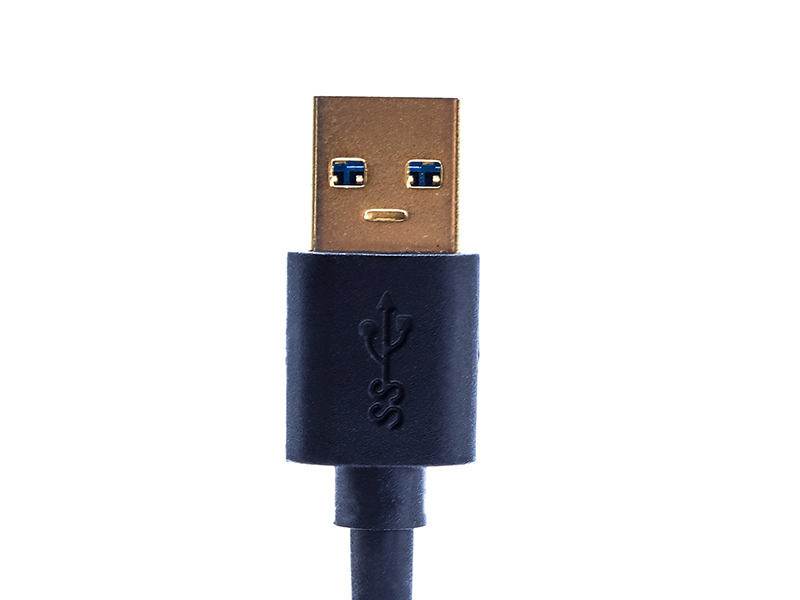

136-5017-5067
| Specifications | |||
| Number of pins: | 9 Pins | Key Position: | - |
| Left Connector: | USB3.0 PLUG | Right Connector: | USB3.0 PLUG |
| AWG Gauge: | 22 AWG ~ 28 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | PBT, Blue | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | Copper Alloy,Gold Plated | Sealing: | - |
| Shielding: | Yes | Overmolding: | PVC |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC | TPE |
| Technical Characteristics | |||
| Rated Current: | 2A | Rated Voltage: | 5V |
| Rated Temperature | -40°C ~ + 80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 10000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | - |
| Application | |||
| BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLES CONNECTORS BOMCAN PROVIDE YOU WITH PROFESSIONAL CABLE HARNESS ENGINEERING SOLUTIONS | |||
